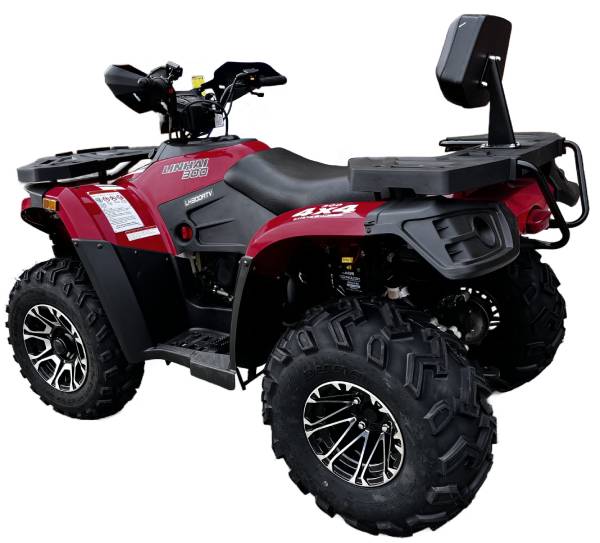

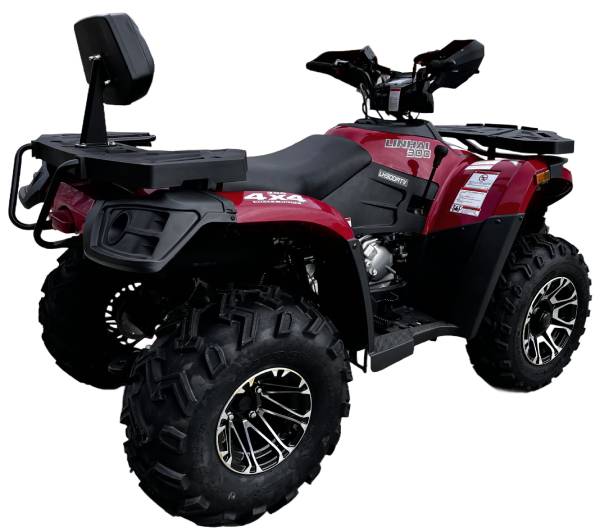

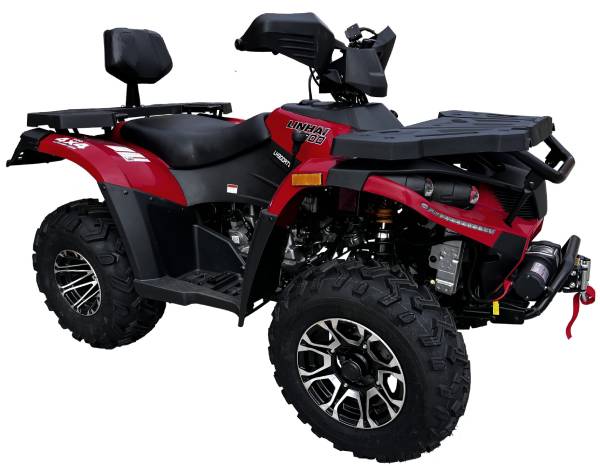

Linhai 300-UT-3

*** 2WD/4WD ***

***With Hitch Ball, Plastic Racks, Winch, Backrest***

Engine Type: 257cc, 4 Stroke, Single Cylinder

Transmission: Automatic L-H-N-R

Cooling System: Liquid-Cooled

Ignition: T.C.I

Starting System: Electric Start

Battery: 12V, 14Ah

Drive Train: Shaft Drive, On-Demand 2WD/4ED

Fuel Capacity: 3.8 Gallons

F/R Brakes: Hydraulic Disc (Hand)/ Hydraulic Disc (Foot)

Max Speed: 40-50 MPH

Front/Rear Tire: 24x8-12, 24x11-10

Suspension Front: Macpherson Independent Suspension

Suspension Rear:  Swing Arm

Wheelbase: 51"

Seat Height: 34"

Ground Clearance: 8"

Max Horsepower: 22 HP

Compression Ratio: 9.8:1

Towing Capacity: 600 LBS

Bore Stroke: 72.39x66.8 mm

Max load: 240 LBS

Weight: G.W. / 750 LBS/ N.W. 650 LBS

Carton Dimensions: L*W*H: 86” x 46”x 33”

Colors: Black, Red, Blue, Army Green, Vista Camo
