| Part NO. |
Description |
QTY |
| 5-01 |
Axle, Front Wheel, M12×250 |
1 |
| 5-02 |
Rim, Front Wheel |
1 |
| 5-03 |
Separate Collar Set, Front Wheel Axle |
1 |
| 5-04 |

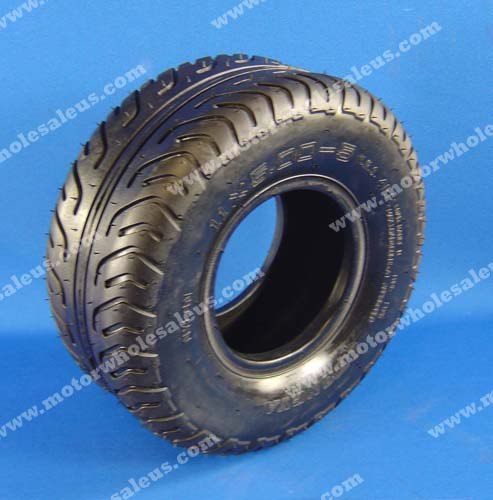

Tyre, Front Wheel 130/60-13 |
1 |
| 5-05 |
Tubeless Valve |
1 |
| 5-06 |
Cap, Tubeless Valve |
1 |
| 5-07 |
Count Gear Box, Odometer |
1 |
| 5-08 |
Cable, Odometer |
1 |
| 5-09 |
Collar, φ12×φ25×21 |
1 |
| 5-10 |
Rubber Ring,Speedometer |
1 |
| 5-11 |
Front Hydraulic Brake System |
1 |
| 5-12 |
Cap, Front Hydraulic Cylinder |
1 |
| 5-13 |
Front Hydraulic Cylinder Comp |
1 |
| 5-14 |
Lever, Right Handle |
1 |
| 5-15 |
Bolt, Front Brake Lever |
1 |
| 5-16 |
Switch, Front Brake |
1 |
| 5-17 |
Wire Cable, Front Brake Switch |
1 |
| 5-18 |
Plain Washer, φ4 |
1 |
| 5-19 |
Spring Washer, φ4 |
1 |
| 5-20 |
Connect Bolt, Hose, Front Brake |
2 |
| 5-21 |
Copper Washer |
4 |
| 5-22 |
Hydraulic Hose, Front Brake |
1 |
| 5-23 |
Clip, Front Hydraulic Hose |
1 |
| 5-24 |
Caliper Comp, Front Brake |
1 |
| 5-25 |
ABS Assy |
1 |
| 5-26 |
Brake Plate Assy, Front Brake |
1 |
| 5-27 |
Bolt, Brake Plate Assy, Front Brake |
2 |
| 5-28 |

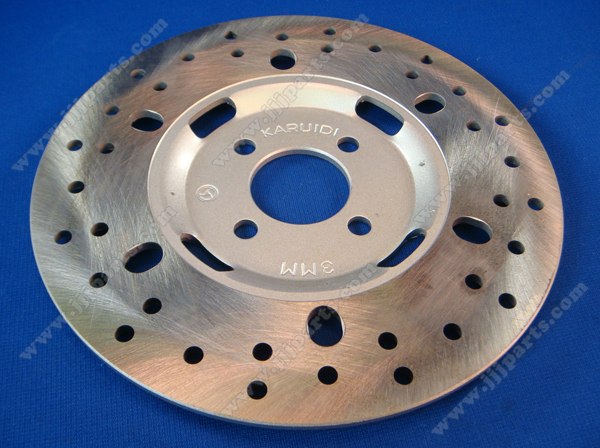

Brake Disc. Assy, Front Wheel |
1 |
| 5-29 |
Inner Hex Bolt, M8×25 |
3 |
| 5-30 |
Bracket |
1 |
| 5-31 |

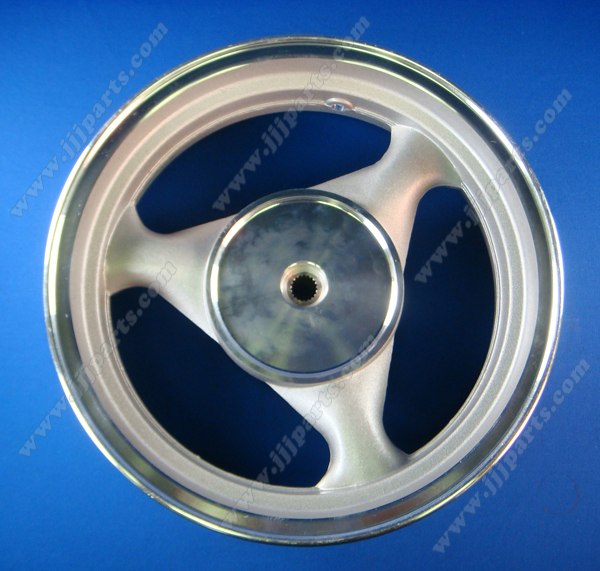

Rim, Rear Wheel |
1 |
| 5-32 |
Tyre, Rear Wheel 130/60-13 |
1 |
| 5-33 |
Tubeless Valve |
1 |
| 5-34 |
Cap, Tubeless Valve |
1 |
| 5-35 |
Collar, φ17.2×φ31×59 |
1 |
| 5-36 |
Collar II, φ17.2×φ31×6 |
1 |
| 5-37 |
Rear Hydraulic Brake System |
1 |
| 5-38 |
Cap, Rear Hydraulic Cylinder |
1 |
| 5-39 |
Rear Hydraulic Cylinder Comp |
1 |
| 5-40 |
Lever, Left Handle |
1 |
| 5-41 |
Bolt, Rear Brake Lever |
1 |
| 5-42 |
Switch, Rear Brake |
1 |
| 5-43 |
Wire Cable, Rear Brake Switch |
1 |
| 5-44 |
Plain Washer, φ4 |
1 |
| 5-45 |
Spring Washer, φ4 |
1 |
| 5-46 |
Connect Bolt, Hose, Front Brake |
2 |
| 5-47 |
Copper Washer |
4 |
| 5-48 |
Hydraulic Hose, Rear Brake |
1 |
| 5-49 |
Clip, Rear Hydraulic Hose |
1 |
| 5-50 |
Caliper Comp, Rear Brake |
1 |
| 5-51 |
Bracket,Caliper Comp, Rear Brake |
1 |
| 5-52 |
Brake Plate Assy, Rear Brake |
1 |
| 5-53 |
Bolt, Brake Plate Assy, Rear Brake |
2 |
| 5-54 |

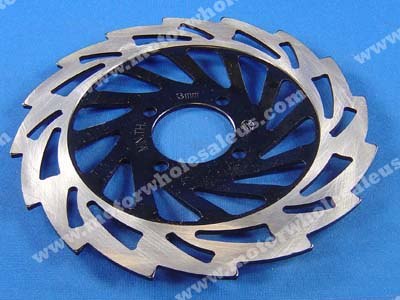

Brake Disc. Assy, Rear Wheel |
1 |
| 5-55 |
Fixing Bolt, Rear Brake Disc. |
3 |
|
